Tutorial: Duplicate 3D Object by Pattern

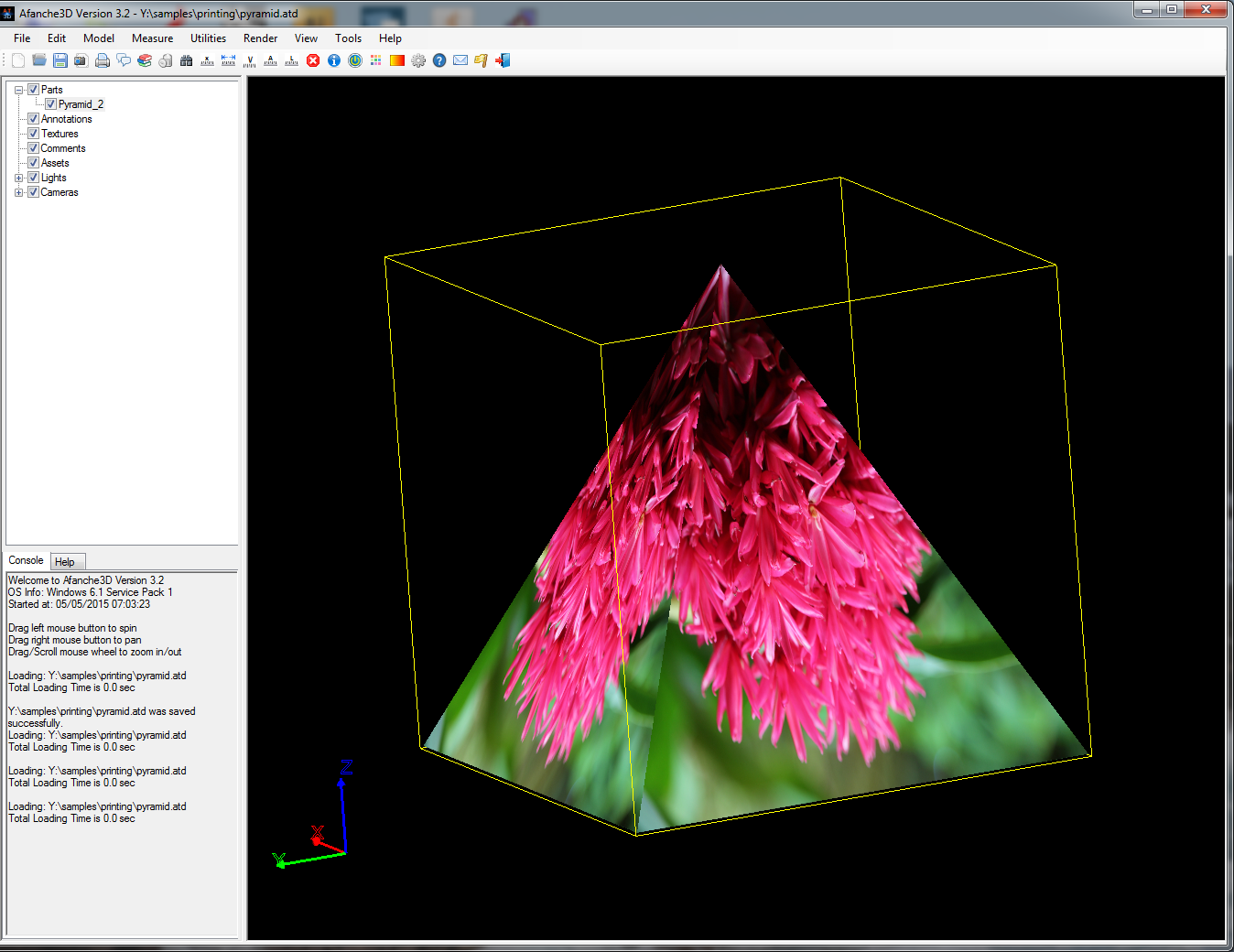

Afanche3D provides a great tool to duplicate 3D object by pattern. In order to do it, please select a 3D geometry first. The following picture shows a 3D pyramid model with texture mapping rendering:

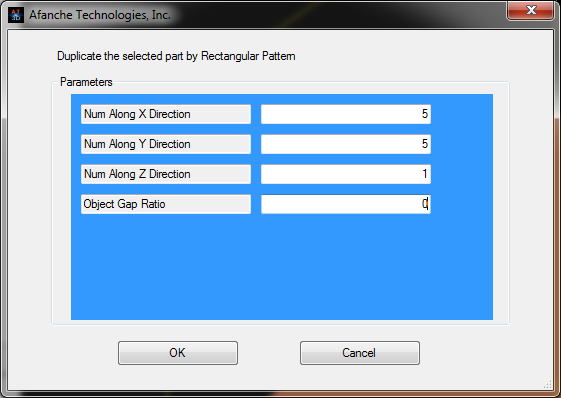

After the 3D object is selected, go to "Model" menu, click "Duplication", click "Rectangular Pattern", the following dialog will pop up:

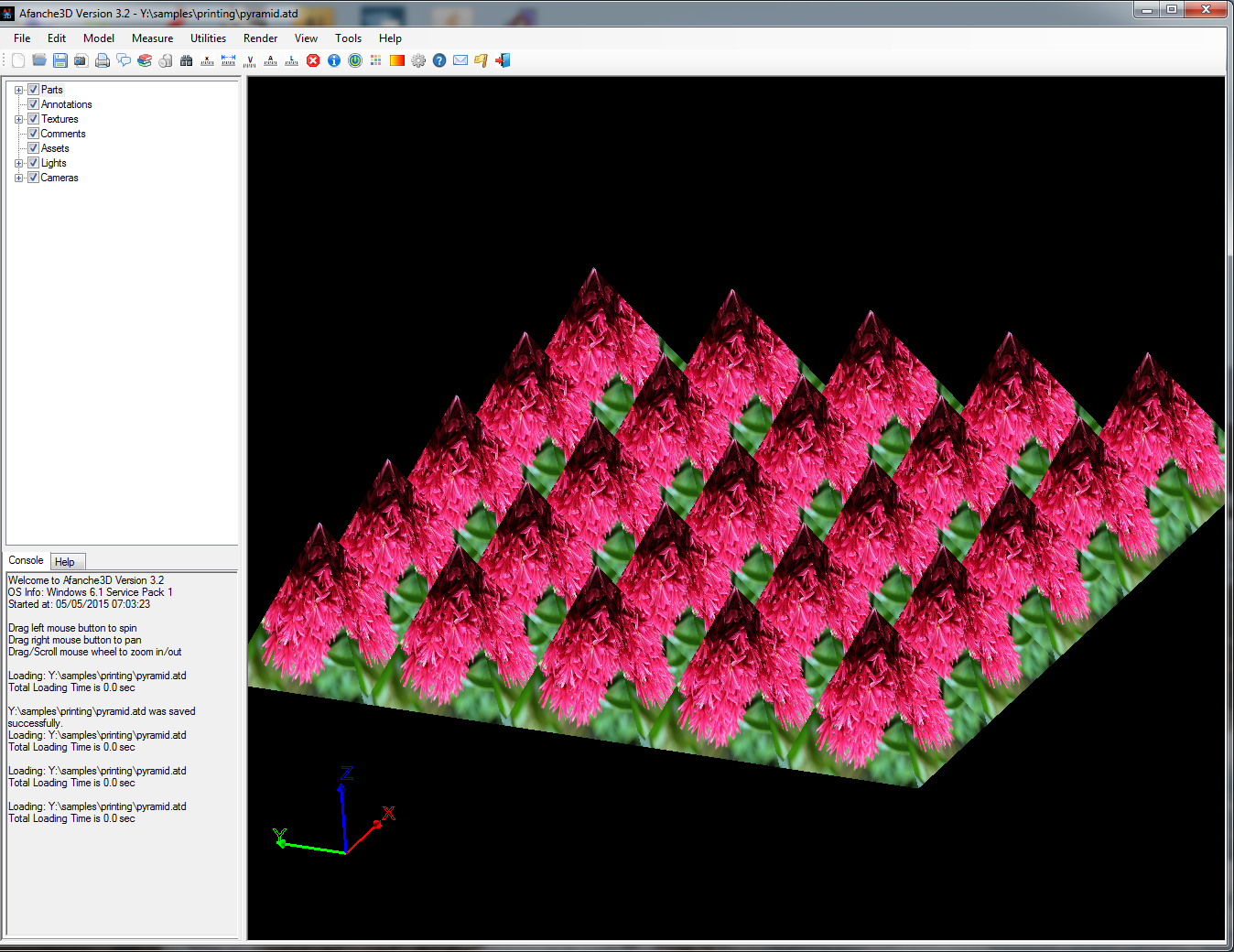

You can change parameters to control how to duplicate the 3D object. For this example, we chose the numbers shown in the dialog. Then click "OK" button. After that, the newly created duplication of the original 3D object is shown in 3D canvas. For this particular example, It looks like the following picture:

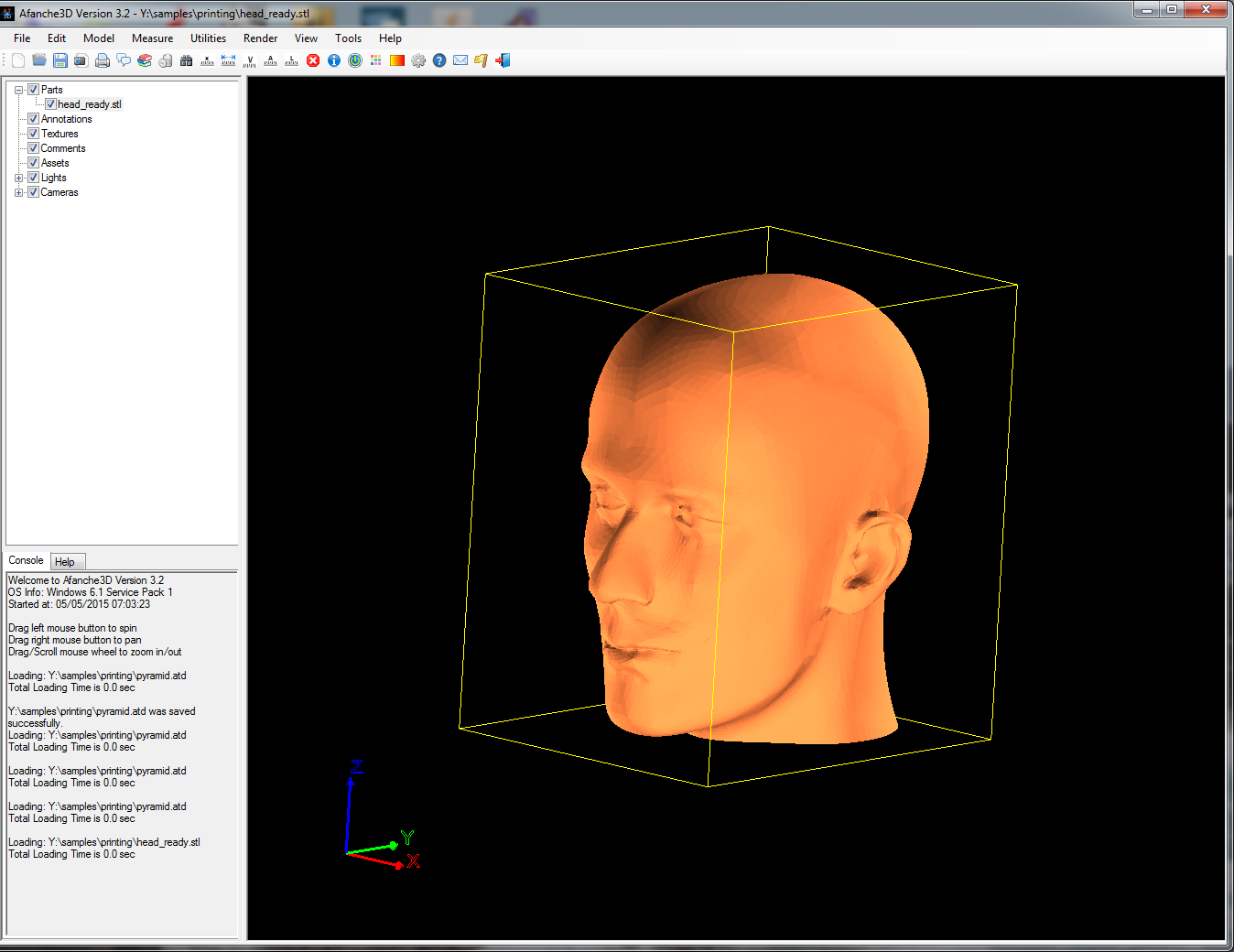

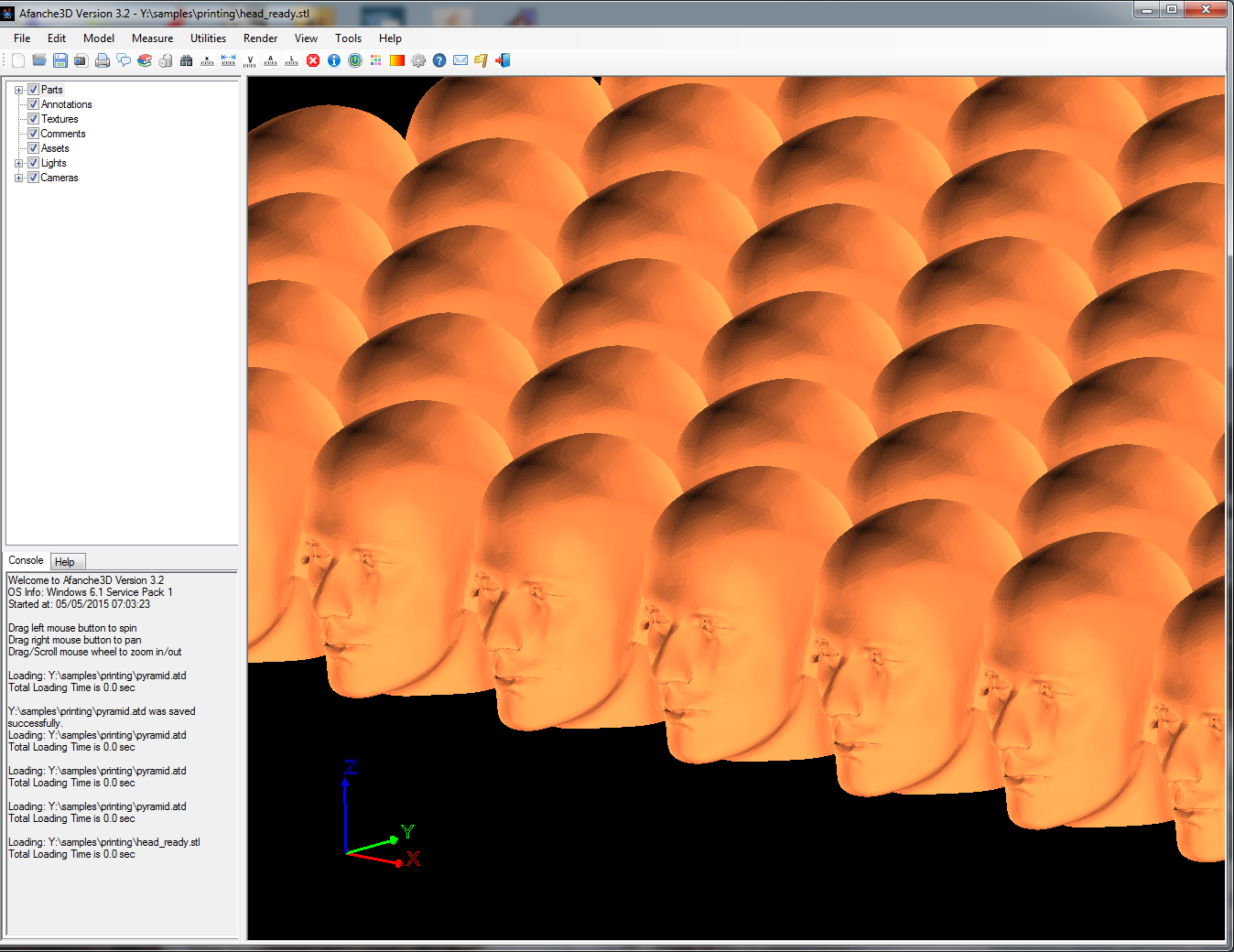

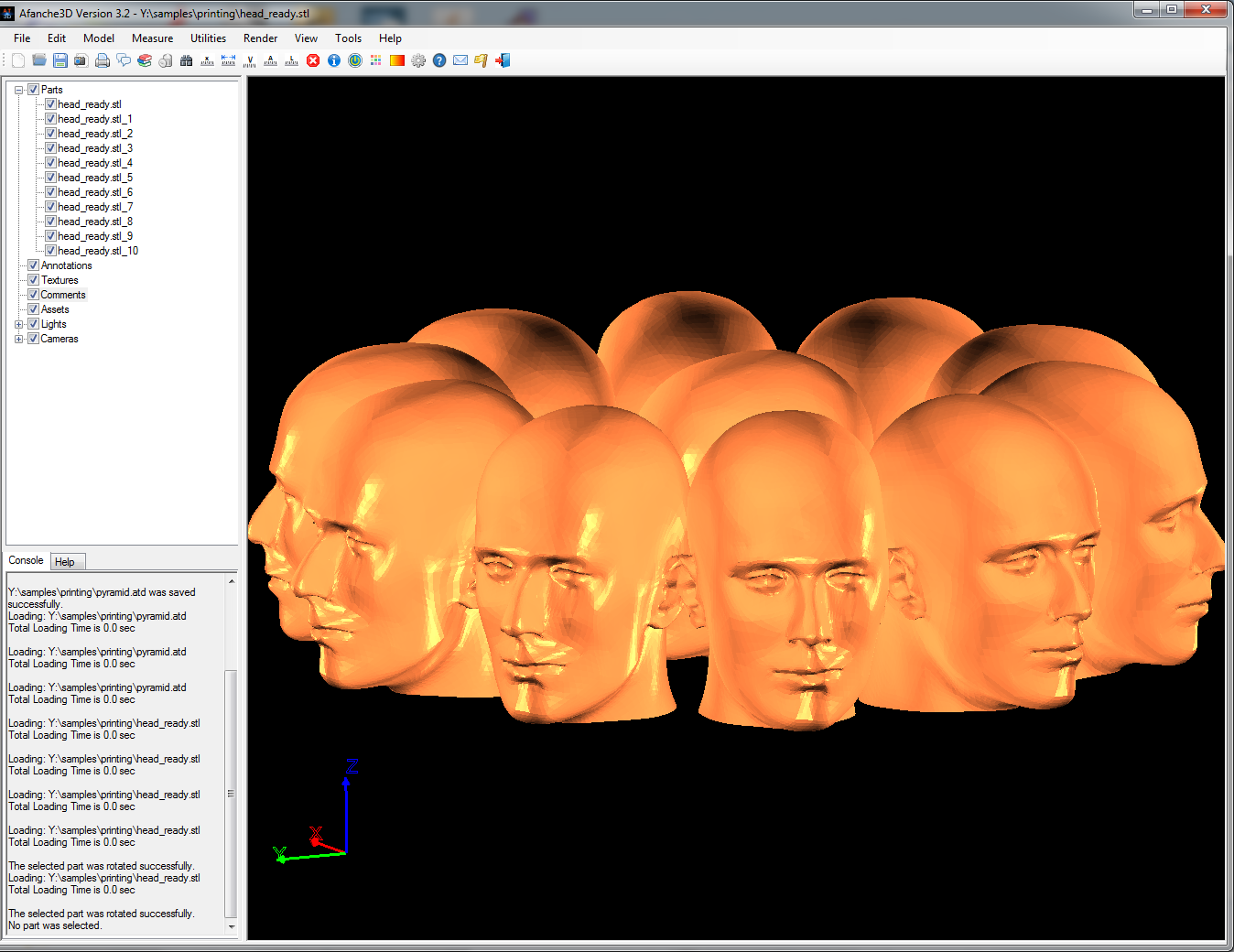

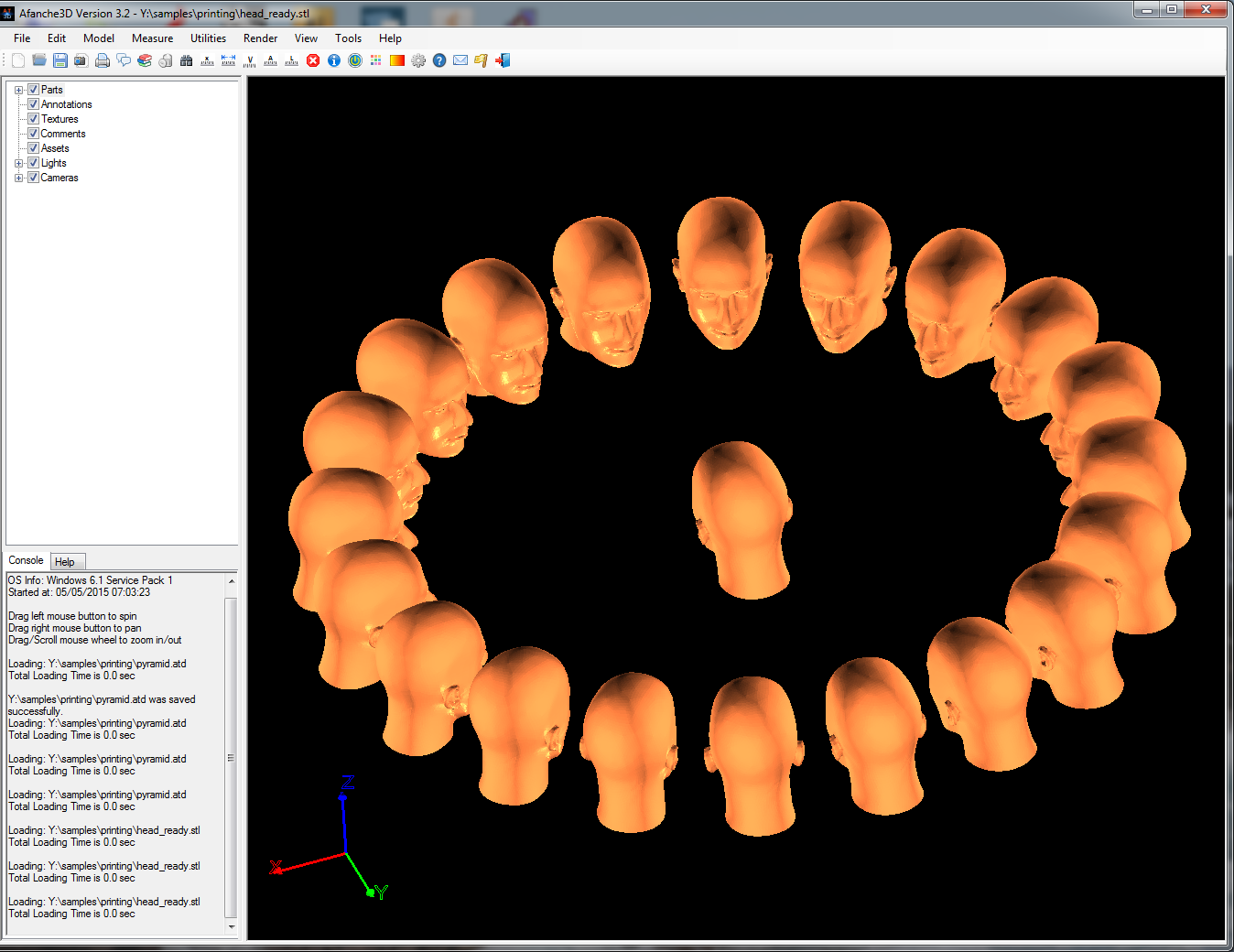

The following pictures show more duplication examples for a 3D head model





Video demo of the tutorial
