Tutorial: About Afanche3D System Unit

Your data files use "mm" as distance unit and you use "mm" unit for all measurements

"mm" is the application system default unit. In this case, you can just ignore the rest of the article and the application is ready for you to use.

Your data files use "inch" as distance unit and you use "inch" unit for all measurements

First, go to "Tools" menu, click "Options", in the popup dialog, change "Length Unit" to "Inch". Second, when you open a 3D data file, in the pop-up file importing dialog, choose "Inch". After those two steps, you are all set. You can ignore the rest of the article.

Your data files use "mm" as distance unit and you use "inch" for all measurements

Go to "Tools" menu, click "Options", in the popup dialog, change "Length Unit" to "Inch". That's all you need to do and the application is ready for you to use. You can ignore the rest of the article.

Your data files use "inch" as distance unit and you use "mm" for all measurements

When you open a 3D data file, in the pop-up file importing dialog, choose "Inch". That's all you need to do and the application is ready for you to use. You can ignore the rest of the article.

Details about unit system

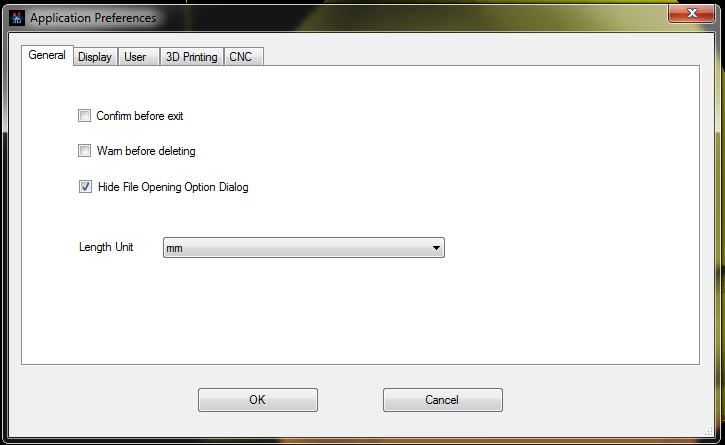

There are two units for distance in Afanche3D. One is application system unit. This is the unit the app uses when you do 3D measurements. Another unit is file importing unit. Afanche3D considers the 3D data you are opening is in this file importing unit. Afanche3D automatically converts 3D data from file importing unit into application system unit in case they are different. To change application system unit, please go to "Tools" menu, click "Options", in the "General" tab of the popped dialog, change "Length Unit" to any unit you would like. It should look like the following picture:

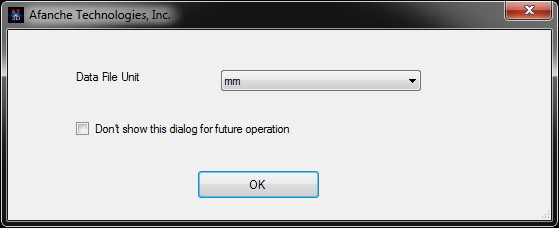

When you open a 3D model file, Afanche3D will popup a dialog to ask the unit of 3D data in this particular file. If you always open 3D files in same unit, you can mark "don't show this dialog for future operation" and Afanche3D will automatically use the file importing unit you chose last time for future file opening. The popup dialog looks like the following picture:

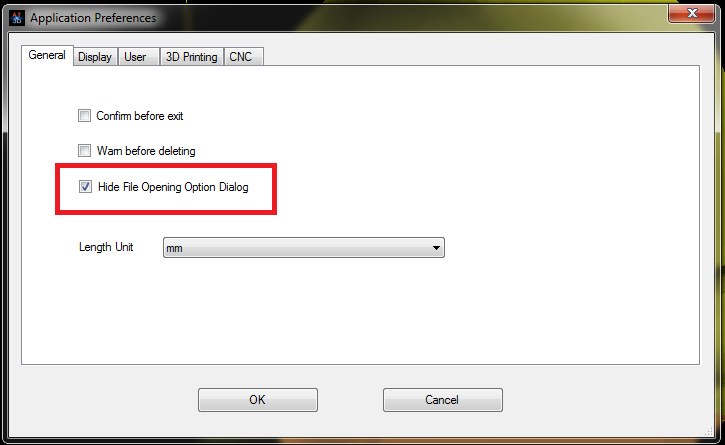

If you marked "don't show this dialog for future operation", but sometimes, you do need to change file importing unit for a particular 3D file, you can re-enable the dialog. Just go to "Tools" menu, click "Options", in "General" tab of the popped up dialog, uncheck "Hide File Opening Optoin Dialog"
